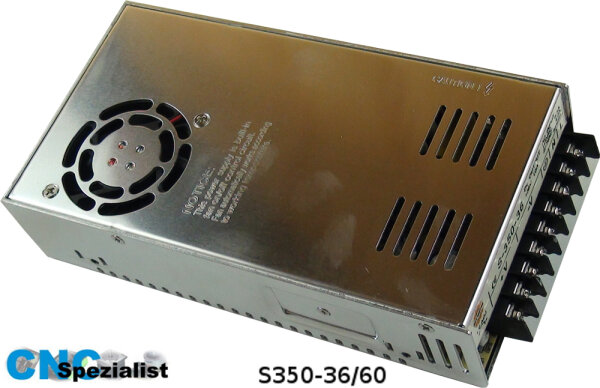

Technische Daten Schaltnetzteil S350-60
| Spannung |
DC Voltage |
60V |
| Spannungstoleranz |
Voltage Tolerance |
+/-1% |
| Nennstrom |
Rated Current |
5,85 A |
| Strombereich |
Current Range |
0-5,85A |
| Spannungsspannung |
Ripple &Noise |
(Max): 240mVp-p |
| Line Regulation |
Line Regulation |
+/- 0,5% |
| Load Regulation |
Load Regulation |
+/- 0,5% |
| Nennleistung |
Rated Power |
350 W |
| Nennleistung |
Rated Powe |
86% |
| Wechselstrom |
AC Current |
6.5A/115V 4.0A/230V |
| Anlaufzeit |
Setup Rise, Hold Time |
200ms, 100ms, 20ms |
| Vibration |
Vibration |
10-500Hz, 2G 10min/11 Zyklus, 60min, je Achse |
| Stehspannung I/P-O/P |
Withstand Voltage I/P-O/P |
3KVACI/P-FG: 1.5KVACI/P-FG:0.5KVAC |
| Isolationswiderstand |
Isolated Resitor |
I/P-O/P, I/P-FG:500VDC/100M W |
| Arbeitstemperatur / Feuchtigkeit |
Working Temp. Humidity |
-20°C - +85°C, 10%-95%RH |
| Abmessung |
Dimension |
215mmx115mmx50mm |
| Gewicht |
Weight |
0,9kg |
| Sicherheitsstandart |
Saftey Standart |
UL1950 |
| EMC |
EMC |
FCCpart1.5J class A |
